The miniature S-Band FM Telemetry Transmitters are designed for operation within industrial, naval, military and aerospace environments. The highly reliable and rugged design meets perfectly today’s demands for very small size, extreme light weight and very low power consumption. These Transmitters are synthesizer controlled, FM telemetry transmitters are best suited for transmitting wideband digital multiplex signals, video or telemetry data. The transmitters are designed to meet Mil-STD 461-E.
Datasheet
| Carrier frequency | 2.2-2.3 GHz with programmability of every 0.1MHz |
|---|---|
| Carrier frequency stability | ±0.003% over temperature range |
| Type of modulation | FM |
| RF Power Output (CW) | 27 dBm (each Port) |
| No of ports | 2 |
| Amplitude unbalance | ±0.3 dB (Max) |
| Isolation | 20dB min |
| Deviation sensitivity | 1MHz / Vpp,±10% over the operating temp |
| Deviation linearity | ±5% max |
| Maximum deviation | 10MHz min |
| Frequency response | 100KHz to 5 MHz |
| Final IF frequency | 12 KHz |
| Incidental frequency modulation | ±8KHz max |
| Modulation input impedance | 10K Ohm min |
| Harmonic and spurious | -60dBc min |
| Operating voltage | 24V DC to 36V DC |
| Harmonic Level @ IF output& Non AGC mode | ≤ -60dBc in both AGC |
| Operating current | 0.5A max |

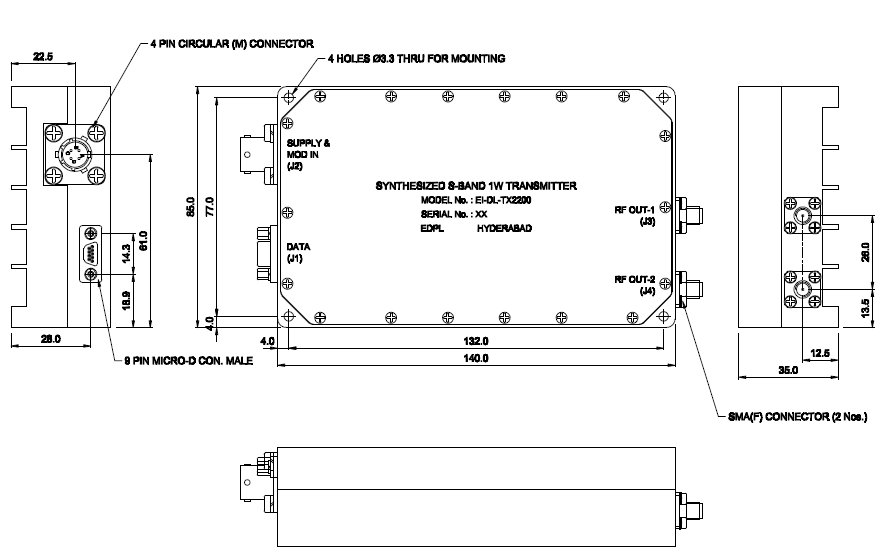

| Mechanical size | 140 x 85 x 35 mm |
| Weight | 0.5Kg |
| Power Supply Connectors | 4 pin circular connector |
| RF output connector | SMA (F) |
