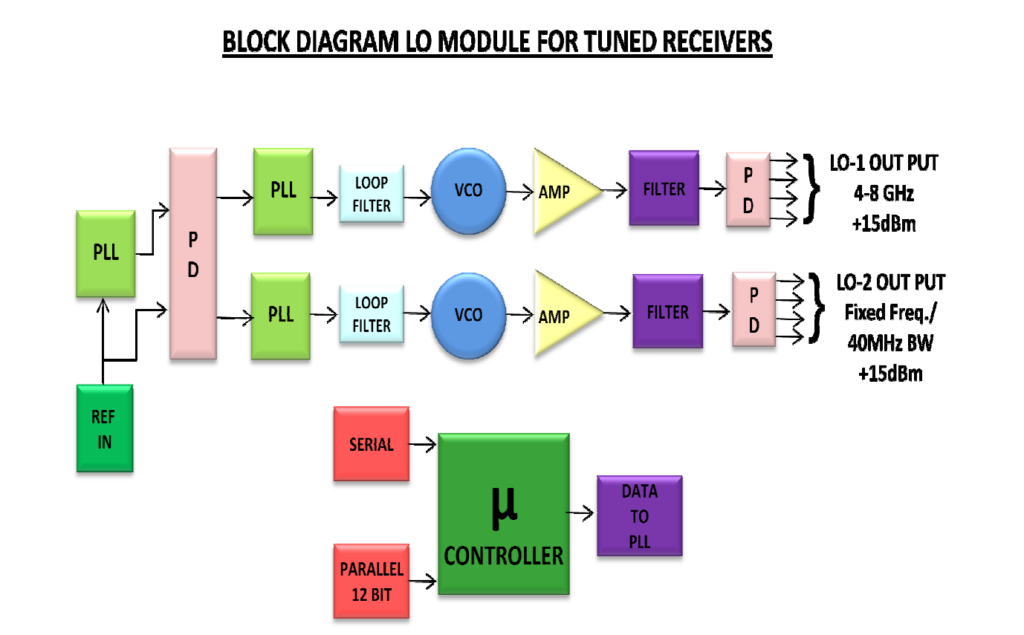

Description: EI-DL-LO5707 is a synthesizer design which employs the latest fractional N technology to realize a miniature high performance ultra-broadband frequency synthesizer. This module covers the entire 4 to 8 GHz band. This versatile synthesizer provides outstanding performance and reliability in high quality at very attractive low cost. LO-II is either fixed frequency or it can be tunable in the frequency range of 4000 MHz to 5000MHz with 40 MHz Bandwidth (BW).
This unit is ideal for applications in communications and instruments.
This module is comes with custom GUI and parallel 12 bit which allows virtually out of box operation.
Key Specifications: LO -I
| PARAMETERS | SPECIFICATIONS |
|---|---|
| Frequency steps: | 1 MHz |
| Frequency Accuracy: | ±10 KHz (Max) |
| Spurious: | -60dBc |
| Harmonics: | ≤ -30dBc |
| Output Power | 15dBm |
| Switching Speed | ≤ 100µs |
| External reference | 100 MHz |
| Temperature Range: | -40ºC to + 80ºC |
| Frequency Range | 4 – 8 GHz |
Key Specifications: LO -II
| PARAMETERS | SPECIFCATIONS |
|---|---|
| Frequency steps: | 1 MHz |
| Frequency Accuracy: | ±10 KHz (Max) |
| Spurious: | -60dBc |
| Harmonics: | ≤ -40dBc |
| Output Power | 15dBm |
| Switching Speed | ≤ 100µs |
| External reference | 100 MHz |
| Temperature Range: | -40ºC to + 80ºC |
| Frequency : | 4340MHz (fixed frequency) |

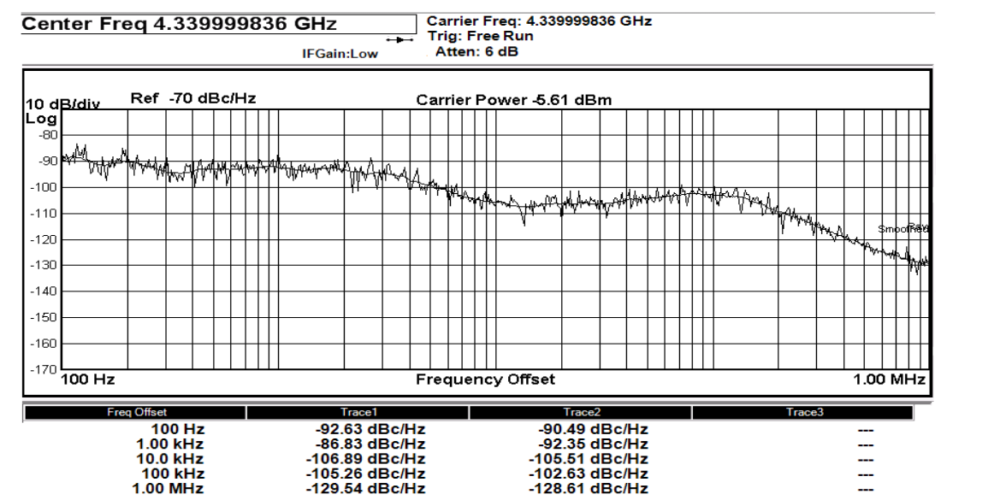

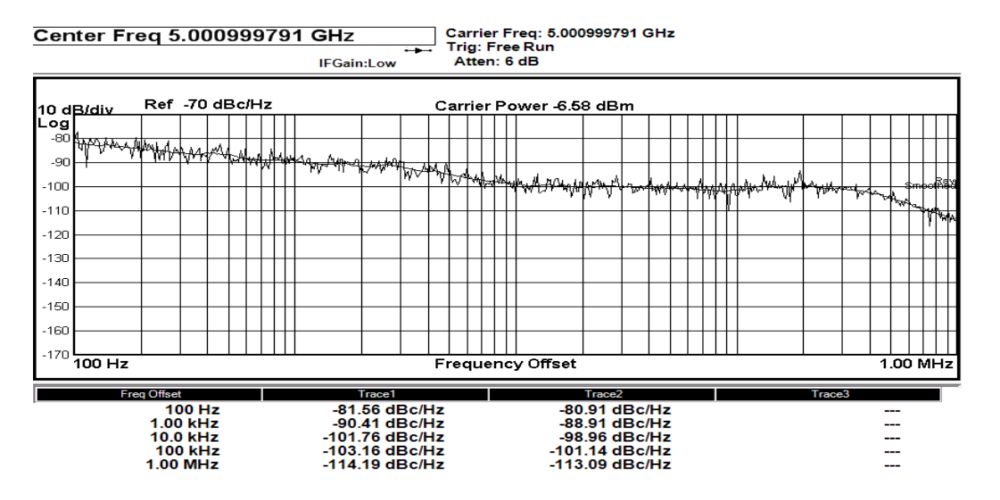

phase noise information
