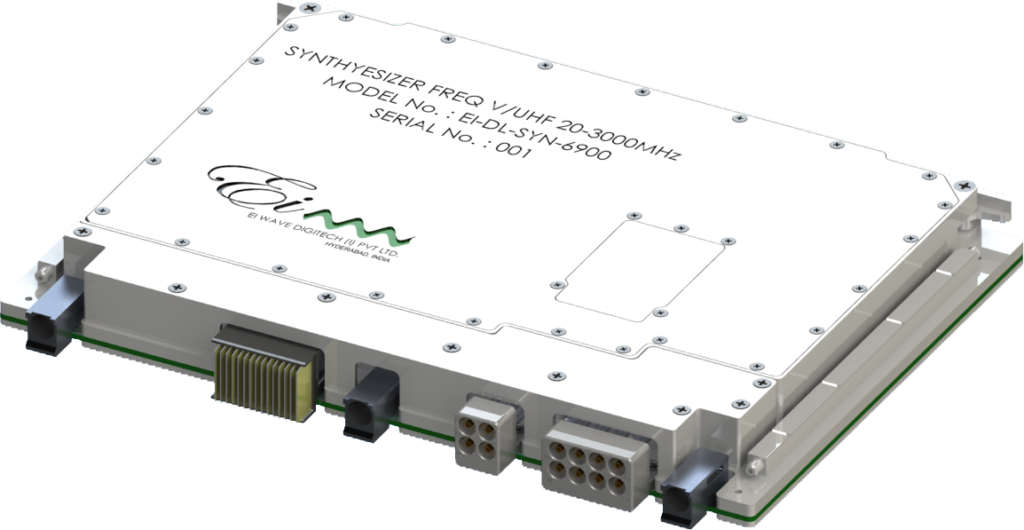

Synthesizer Freq V/UHF 20-3000MHz-2CH module is designed to produce the following frequencies.

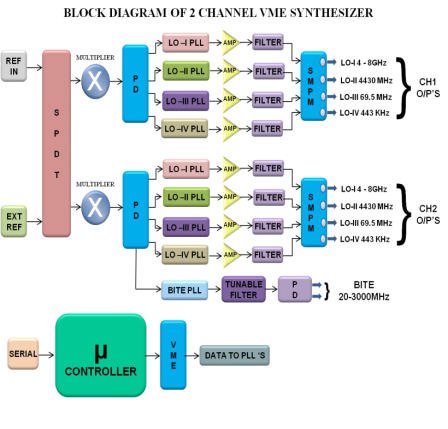

• LO-I PLLgenerates the frequencies from

4000-8000 MHz with step size of 50 KHz

(2 Outputs each individually Programmable).

• LO-II PLLgenerates the fixed frequency 4430 MHz with step size of 50 KHz (2 Outputs each individually Programmable. It can also be variable from 4000-5000MHz frequency.
• LO-III DDS based synthesizer generates the frequencies from 69.545MHz±250KHzwith step  size of 1Hz (2 Outputs each individually Programmable).
• LO-IV generates the fixed frequency 443KHz

(2 Outputs).

• BITE source generates the frequencies from 20 to 3000MHz (2 outputs).

This versatile synthesizer provides outstanding performance and reliability in a high quality compact package, at a attractive low cost. This unit comes with a software which allows user to communicate easily with the synthesizer.
