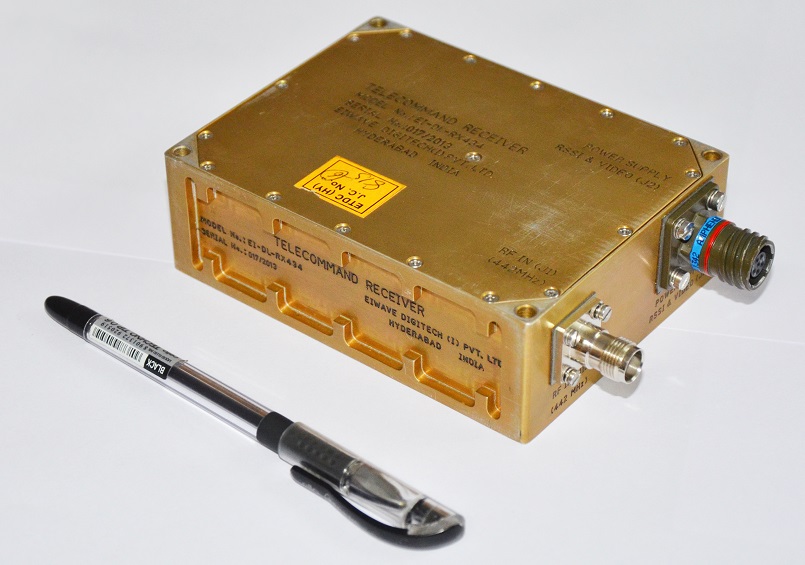

The miniature UHF-Band FM Telemetry / Telecommand Receivers are designed for operation within industrial, naval, military and aerospace environments. The highly reliable and rugged design meets perfectly today’s demands for very small size, extreme light weight and very low power consumption. These Receivers are synthesizer controlled, FM telemetry / Telecommand Receivers are best suited for receiving narrowband or wideband telecommand, video or telemetry data. The Receivers are designed to meet Mil-STD 461-E.
| Carrier frequency | 420 – 450 MHz |
|---|---|
| IF Bandwidth (3dB , 60dB) | 400 KHz (Min) , 2.2 MHz (Max) |
| Sensitivity | -95dBm |
| Demodulation | FM |
| Dynamic range | 80dB Min. |
| Video Bandwidth ( Lower 3 dB Frequency , Higher 3 dB Frequency ) | 7.0 KHz , 200 KHz |
| Image Spurious & IF Rejection | 90dB Min. |
| Video Output | 30m V rms/10KHz |
| FM Deviation | 100 KHz |
| RSSI | 0-5V over dynamic range |
| Power supply input Voltage | +28V±4V DC with transient Protection up to 70V Pulse of 10µ Sec |
| Current | 0.25A (Max) |
| Reverse polarity protection | No damage to the unit on application of reverse polarity Power input |
| EMI/EMC | As per MIL-STD-461E |

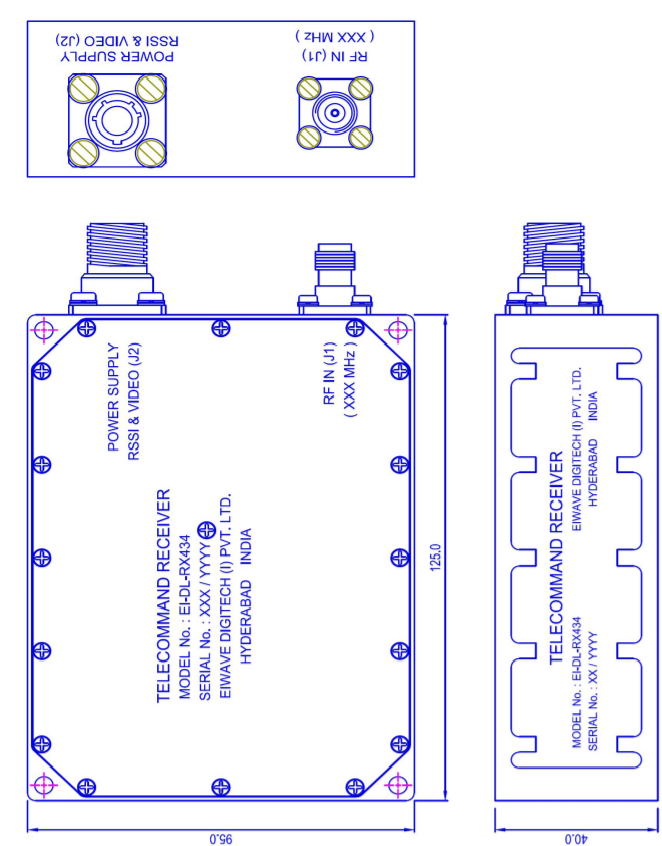

| Dimensions( L x B x H ) | 125 x 95 x 40 mm Maximum (Excluding connectors) |
| Weight | 750g (max) |
| Connectors TNC (F) | RF IN |
| Power Supply Connector | Circular Connector 6 Pin |
