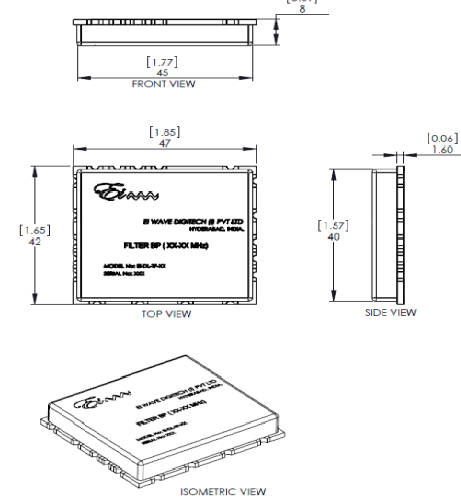

5 pole Tunable filters are designed with ultra high rejection. Five poles filter structure ensures sharp cut off for the filter. The filter requires a s single 5V supply .The digital interface format is SPI serial ,all control logic are 3.3V logic only. The miniature filter comes with surface mount package with overall size fitting in (42x47x8(mm)).
| Frequency Coverage: | 300MHz – 1600MHz |
|---|---|
| Input/Output Impedance | 50Ω |
| In-band Input/Output VSWR | 1.5: 1 typical, 2.2: 1 max |
| Insertion Loss | 5.6 dB typical/ 6dB max |
| Percent Bandwidth(3dB) | ±3% typical |
| Percent Bandwidth(30dB) | ±7% typical |
| shape factor(30dB/3dB) | 2.5 |
| Inband RF Power Handlin | +15 dBm |
| Out of band RF Power Handling | +20 dBm @ +/- 15 |
| Tuning Control | SPI |
| Tuning Speed | 100μsec typical |
| Operating Temperature Range | -40 to +85°C |
| package | smd |
| Frequency band | suffix | insertion loss | shape factor |
|---|---|---|---|
| 300MHz – 500MHz | 1 | 5.6 dB typical/ 6dB max | 2.5 |
| 500MHz – 750MHz | 2 | 5.6 dB typical/ 6dB max | 2.5 |
| 750MHz – 1000MHz | 3 | 5.6 dB typical/ 6dB max | 2.5 |
| 1000MHz – 1300MHz | 4 | 5.6 dB typical/ 6dB max | 2.5 |
| 1300MHz – 1600MHz | 5 | 5.6 dB typical/ 6dB max | 2.5 |
| Pin number | connection | rating |
|---|---|---|
| 1 | NC | — |
| 2 | NC | — |
| 3,4 | GND | — |
| 5 | SPI CLK | +3.3V |
| 6 | SPI CS | +3.3V |
| 7 | SPI MOSI | +3.3V |
| 8 | +28V | +30V |
| 9 | +5V | +5V |
| 10 | NC | — |
| 11 | GPIO | +3.3V |
