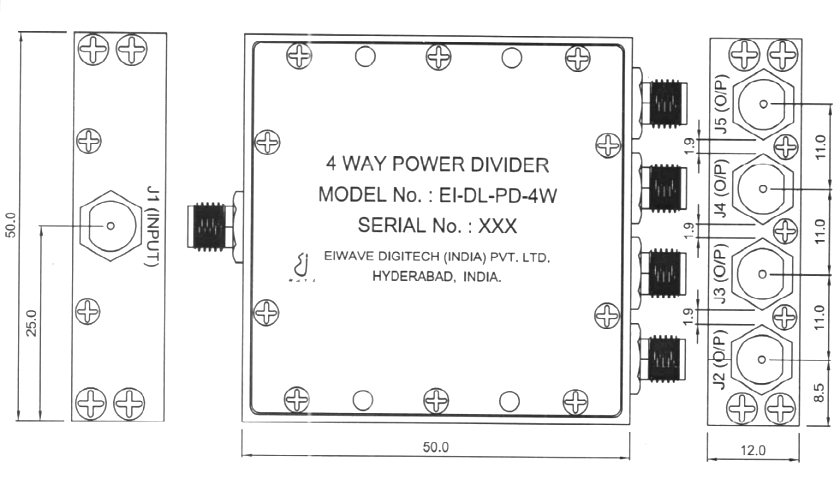

EI-DL-PD-4W is an RF broadband, 4 way, power divider, and power combiner furnished with type-SMA female connectors. All band frequencies from 0.5-2 GHz are covered with optimal performance. Max microwave input power level  is better than 1 watt can be handled in both power splitter and power combiner applications.

The unit is a precision designed and etched Wilkinson type Microstrip circuit on a low loss, high frequency, dielectric substrate. The Wilkinson microstrip circuit passes DC current to all ports making it ideal for use in active systems. Electrical performance is highlighted by 2 dB max insertion loss , 14 dB min isolation, 2:1 max input:output VSWR . Equal power split and  imbalance is displayed by ±0.5dB max amplitude balance and ±5° max phase balance. Narrow band RF performance over your frequency range may be even better.
